Description

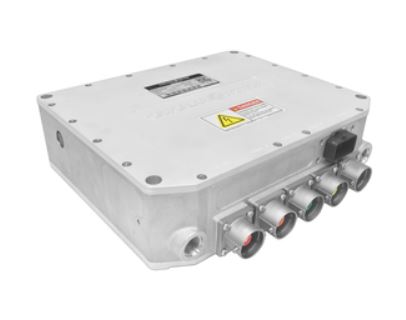

CM350 DZ – 500Arms continuous, 720Arms peak, 200-850VDC
Features:
4 (0-5V) Analog Inputs
2 RTD inputs PT100/1000
4 Digital Inputs 4-STG
2 High Side Relay Driver Outputs
2 Low Side Relay Driver Outputs
Resolver Interface
Sin-Cos Encoder Interface (Available in the -SP model for DZ)
CAN 2.0A/B Port 125kb-1Mb adjustable rate and offset
RS232 Programming and Diagnostic
LIN Communication Capable4
Integrated DC-Link EMI Filter
Variable PWM Rate
HVIL, plug in connections
Internal EMI filter
Recommended Cables:
RMS-G2-0045 – DC Cable Kit, 3M, Straight Connector
RMS-G2-0049 – DC Cable Kit, 3M, Right Angle Connector
RMS-G2-0046 – AC Cable Kit, 3M, Straight Connector
RMS-G2-0050 – AC Cable Kit, 3M, Right Angle Connector
New Eagle recommends purchasing engineering support hours with your first purchase of this product.
Volume Pricing:
For production volume pricing, please email sales@neweagle.net.
Click Here for more information.
