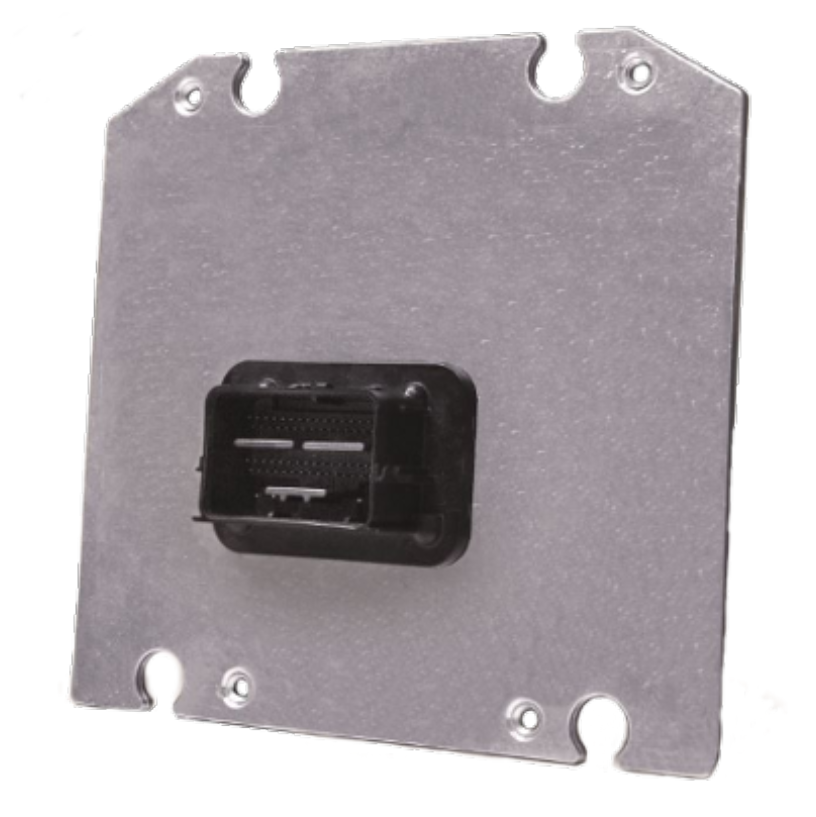

The GCM70-1559 is one of the Raptor™ rugged production controllers that use a software development process based upon MATLAB/Simulink and Raptor-Dev which significantly speeds up algorithm development by using automatic integration and code generation. In addition, developers can quickly test application software using simulation and automated testing.
| Weight | 0.8 lbs |
|---|---|
| Dimensions | 6 × 6 × 2 in |
| PINS | 70 |
| Platform | MotoHawk, Raptor |
| Type | General Control Modules |
| Processor | MPC5634M |
| Inputs | 22 |
| Outputs | 19 |
| Comm | 2 CAN 2.0B |
| Op Voltage | 8-32 VDC |
| ECCN # | EAR99 |
| Raptor Controller Type | GCM70 |
Refer to the table below for prototype volume discounts. For production volume pricing, please email sales@neweagle.net.
| QTY | Prototype Price |
|---|---|
| 1-9 | $995.00 |
| 10-49 | $945.25 |
| 50-99 | $920.38 |
| 100+ | $895.50 |
